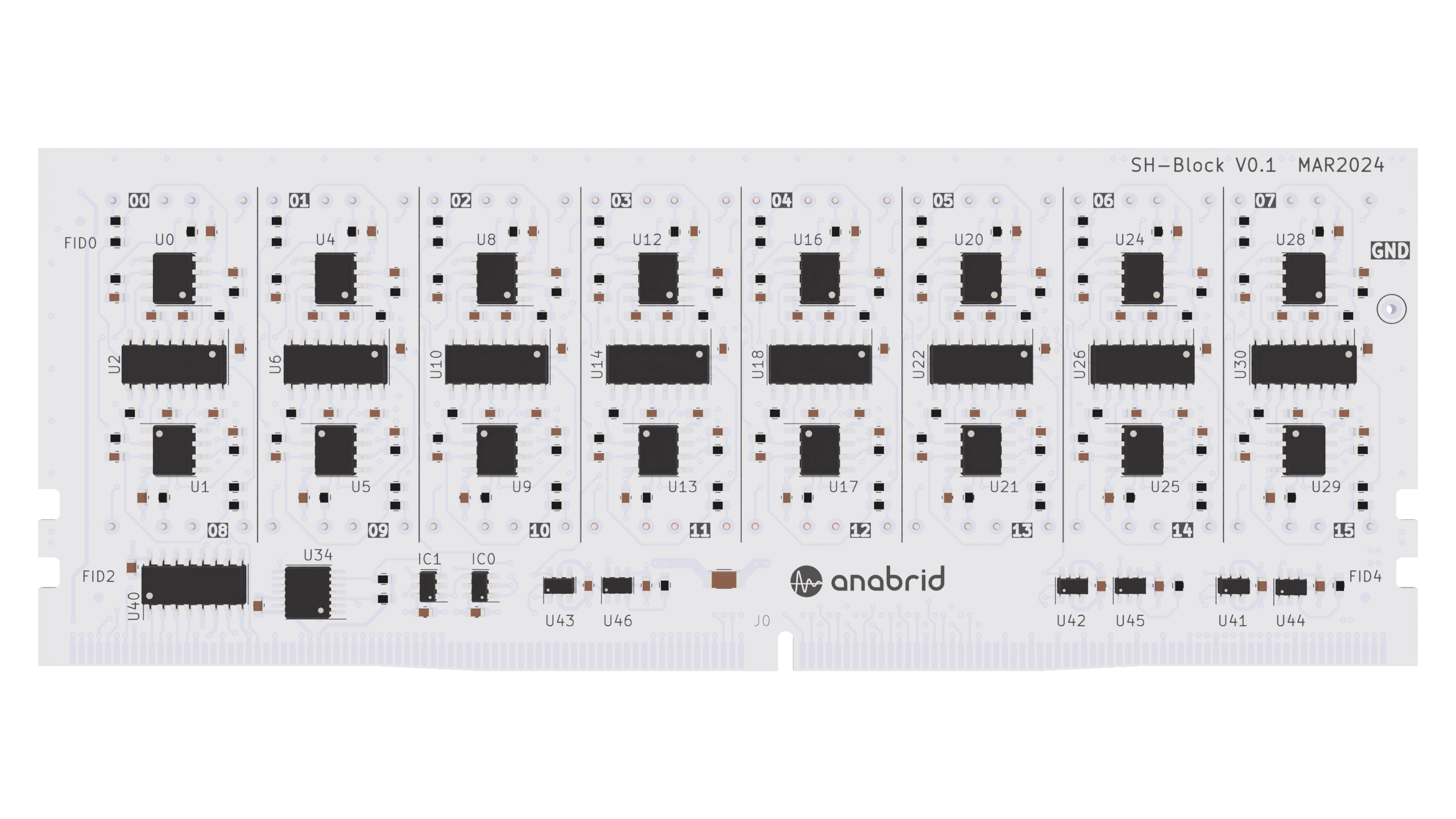

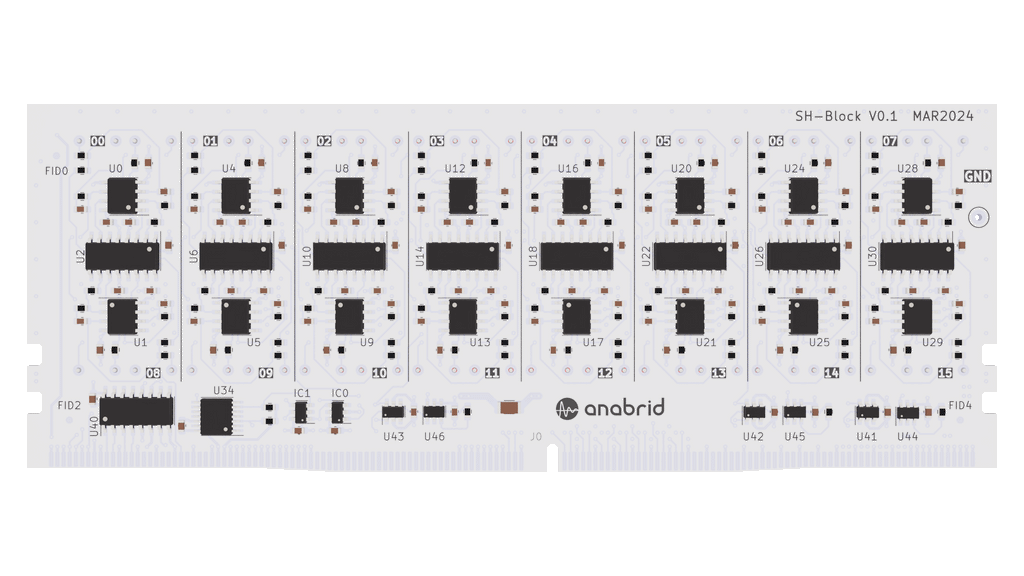

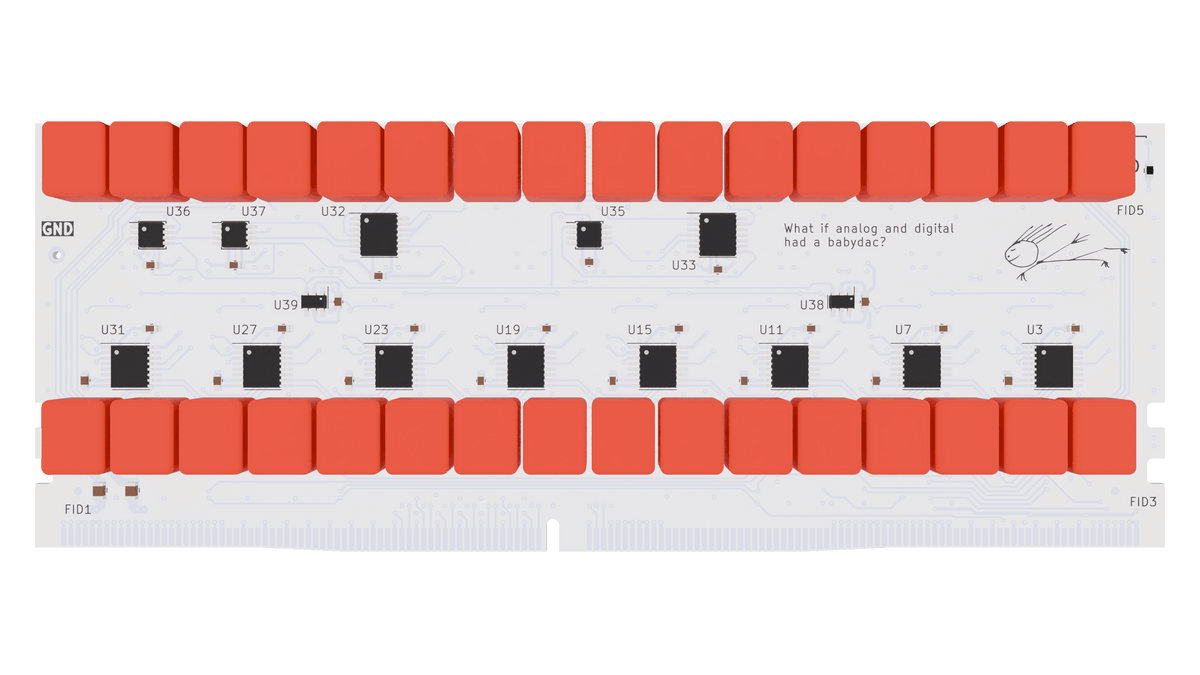

SH-Block

The SH-Block is the sample-and-hold block of an mREDAC cluster. It receives the 16 summed output/input-path channels from the I-Block side of the cluster, can track or freeze those analog values, and applies channel-local offset compensation so that a held value is not dominated by the internal offset of the sample-and-hold path.

The SH-Block contains 16 sample-and-hold channels.
