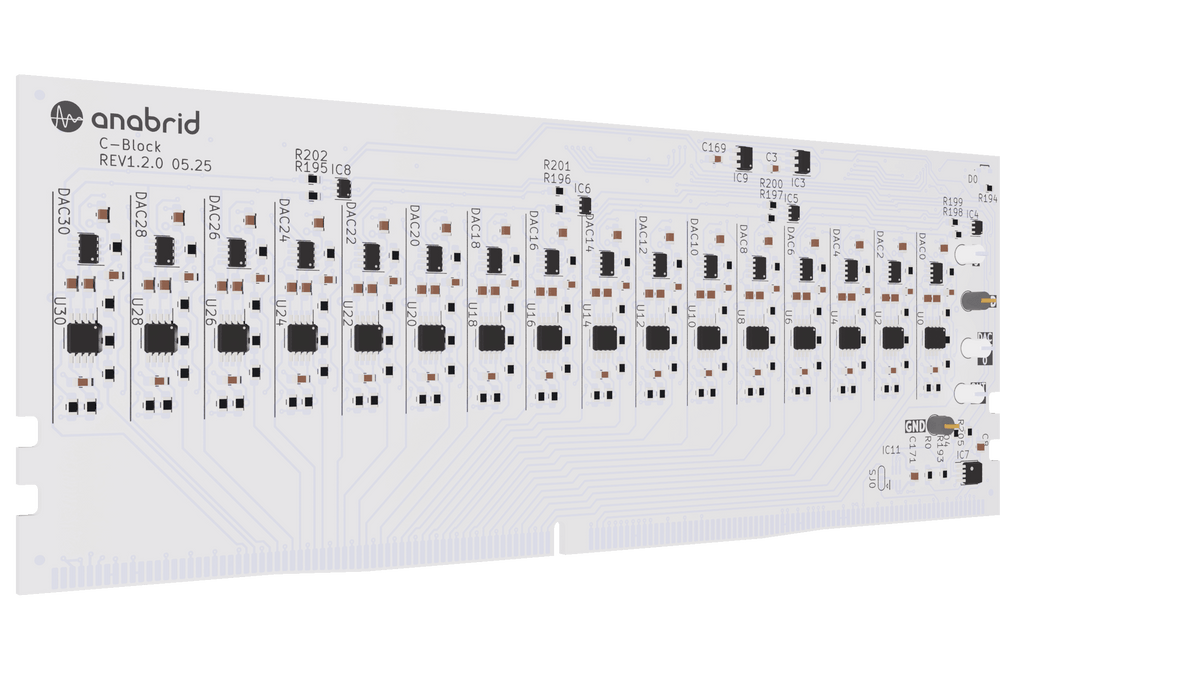

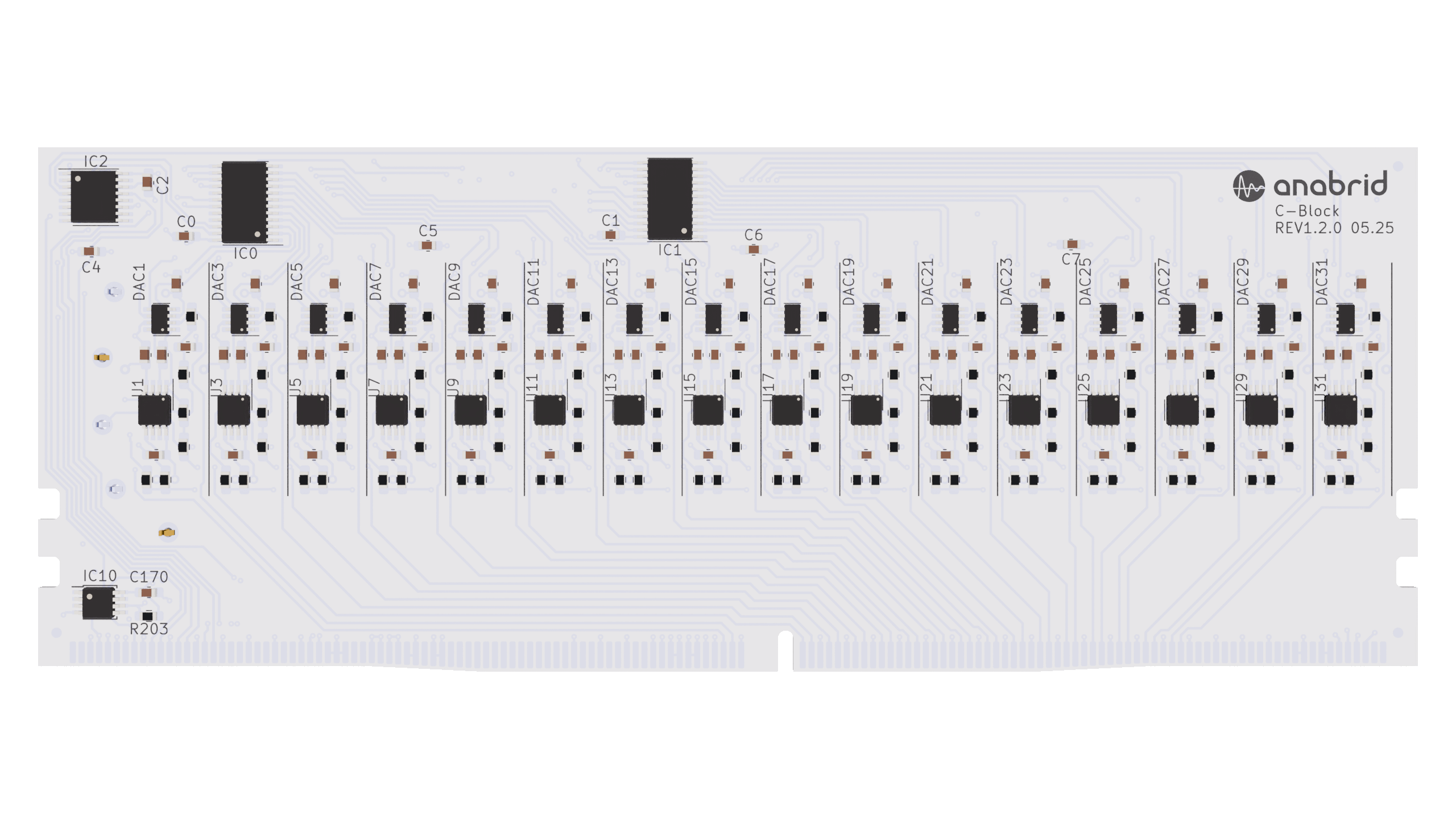

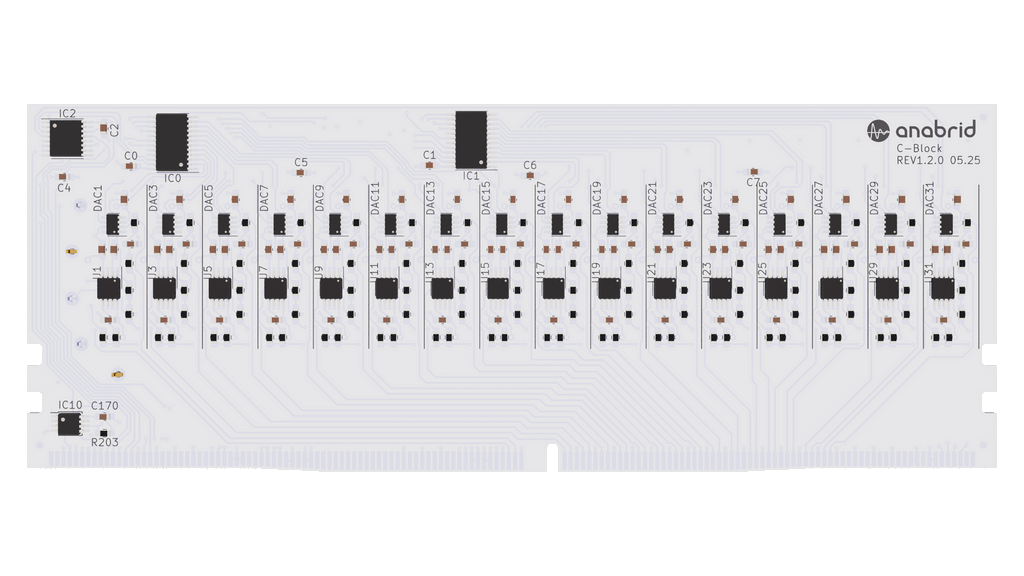

C-Block

The C-Block is the coefficient block of a cluster. It applies programmable scalar weights to analog lane signals after source selection in the U-Block and before the signal is consumed locally by the I-Block or routed further through the T-Block.

The C-Block implements 32 independent coefficient channels. Each channel belongs to one analog lane and performs scalar multiplication on the voltage present on that lane.
